5/20/100Pcs 7mm Push Button Switch PBS-110/111 Momentary ON-OFF Micro Switch NO NC Reset Switch

Discover the PBS-110/111 7mm push button switch kit from Azabooti for compact, reliable control panels. Perfect for DIY projects, arcade cabinets, and control interfaces, with color-coded caps and clear actuation feedback.

7mm Push Button Switch PBS-110/111 Kit

Gain instant, reliable control with a compact 7mm panel mount push button switch kit designed for electronics projects and control panels. This set provides color-coded actuator caps and robust hardware so you can clearly indicate status while keeping your enclosure neat and professional. Whether you’re building a arcade cabinet, DIY control panel, or a custom machine, these switches deliver tactile feedback and dependable operation in a small form factor.

• Compact 7mm diameter panel mount fits neatly into tight spaces while delivering a clear, positive actuation feel.
• PBS-110 and PBS-111 variants support ON OFF action with optional NO/NC configurations to match your wiring needs. Note that configurations may vary by variant; choose the variant that matches your circuit design.
• Dual terminals provide straightforward wiring for quick integration into your project.

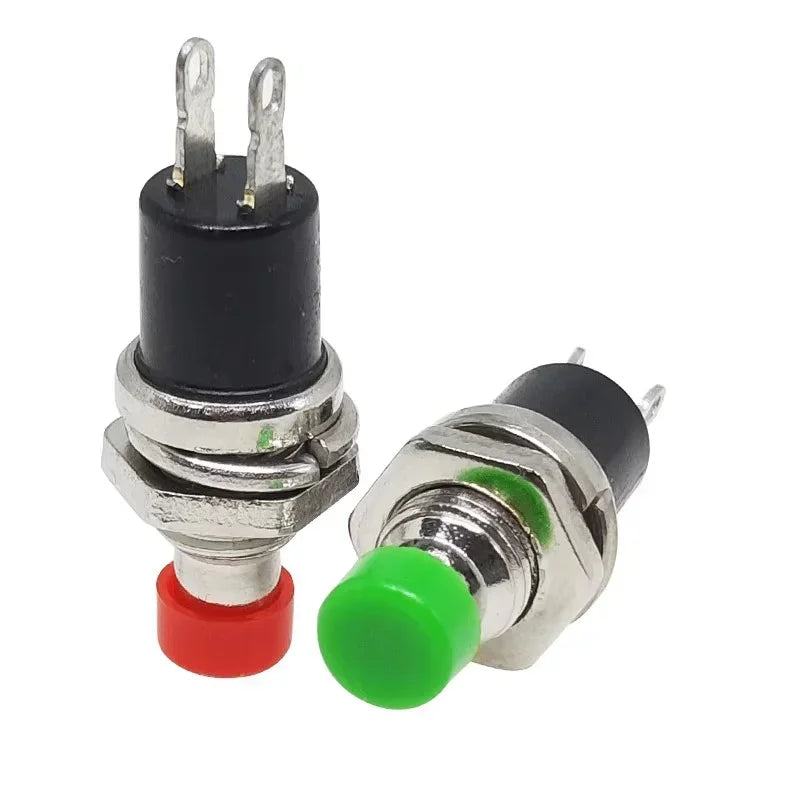

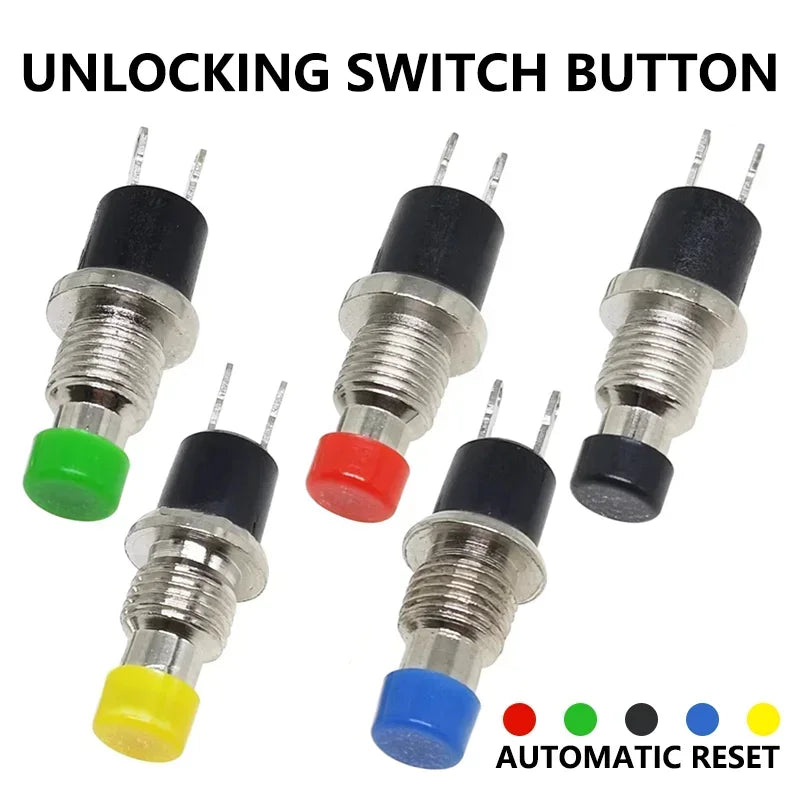

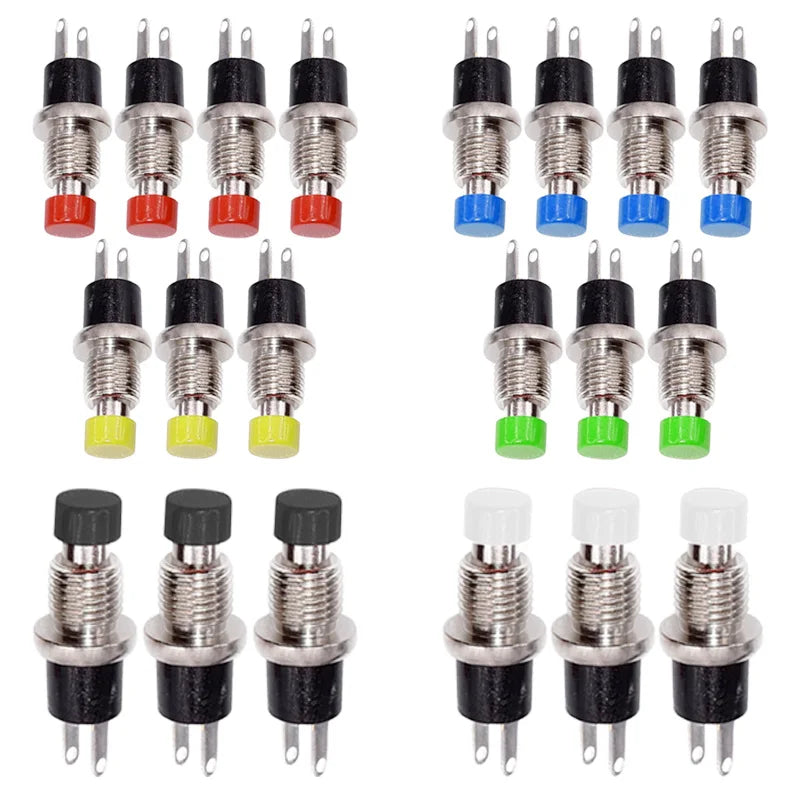

• Color-coded caps include red, blue, green, yellow, black, white and other hues to visually indicate states or functions at a glance.

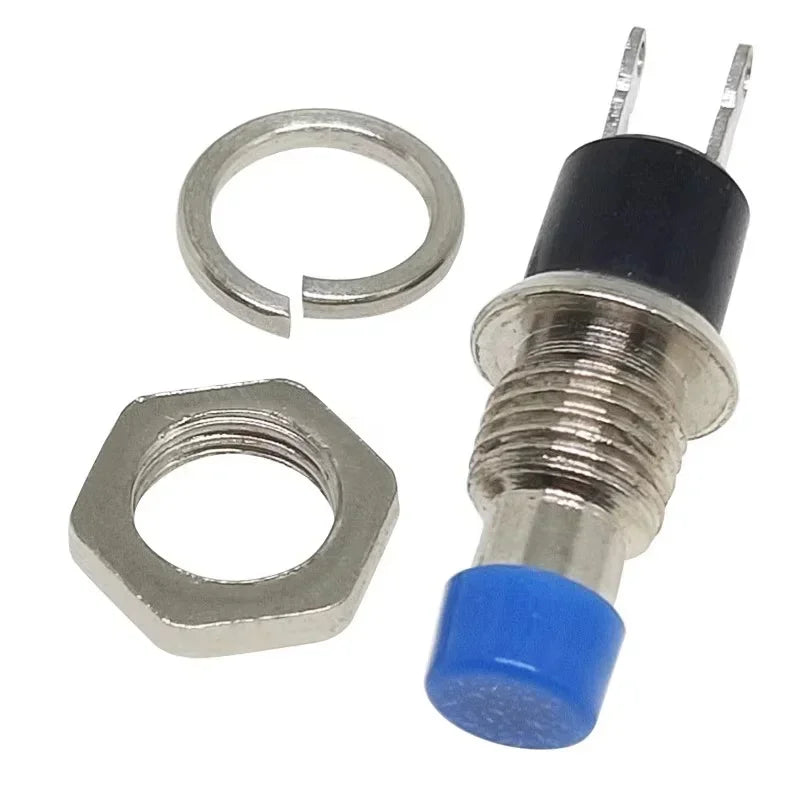

• Includes mounting hardware a threaded bushing, a securing nut and a washer for solid, vibration-resistant installation.
• Durable construction with an alloy body and sturdy metal bushing to withstand frequent use in hobby and professional applications.
• PCB-friendly and via-through-hole ready with clean leads for reliable soldering or crimping to your control circuitry.

In a variety of color options, these switches are ideal for quickly differentiating functions in multi-button setups, game cabinets, industrial controllers, or custom electronics enclosures. The bright caps are easy to swap and customize as your project evolves, helping you maintain a clean, intuitive interface for operators and end users alike.

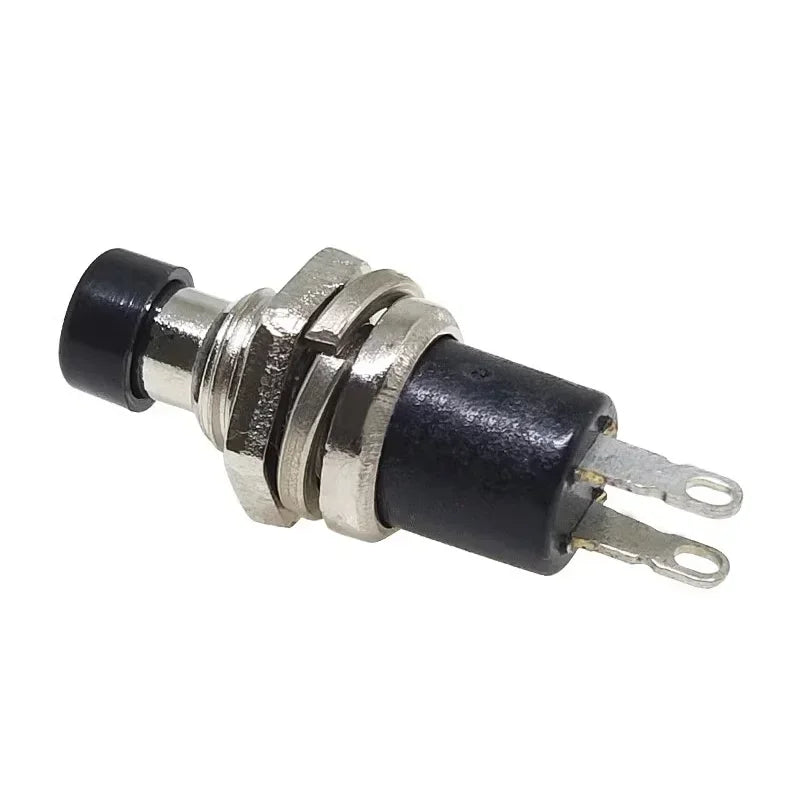

For mounting, you’ll find a standard threaded bushing that accepts a nut and washer, ensuring a secure fit even in panels with limited depth. The two lugs are designed for simple wiring, enabling straightforward integration with your preferred control logic, microswitch, or microcontroller in both simple and more complex circuits.

Usage tips: • Verify the variant you select matches your desired configuration (ON OFF with NO/NC options). • Confirm panel cutout size is at least 7mm and accommodate the mounting nut/washer combination. • Use color caps to designate each switch’s role in your control scheme. • If you need quick replacement, this kit makes it easy to stock up on multiple switches for future repairs or expansions. • When wiring, observe proper polarity and secure connections to avoid intermittent operation.

Care and maintenance: wipe with a dry or slightly damp cloth; avoid harsh solvents that could degrade the caps or seals. Inspect mounting hardware periodically to ensure the switch remains firmly seated and free of play. If the cap colors fade with heavy use, simply replace with new caps to maintain visibility and ease of use.

Features

• Enable ON OFF action for precise control
• Provide NO NC variants for wiring options
• Compact 7mm panel mount fits tight spaces
• Color coded actuator caps for clear status
• Dual terminals simplify wiring and testing
• Durable hardware for long projector life
• Tactile feedback enhances user interaction

Frequently Asked Questions

What configurations are available for PBS-110 and PBS-111?

PBS-110 typically offers momentary ON OFF action with configurable terminals. PBS-111 variants may include NO NC options to match your circuit design. Check variant markings to select the right wiring configuration.

Can these switches fit in a small enclosure?

Yes, the 7mm diameter panel mount is designed for compact enclosures. The small form factor supports tight spaces while delivering reliable actuation.

Do you include color coded caps and hardware?

The kit includes color coded actuator caps and robust mounting hardware for easy assembly. This helps visually indicate status and keeps the enclosure neat.
