27Pcs /16pcs/10pcs BGA general template Universal Direct Heated Stencils For SMT SMD Chip Rpair and easy support

Azabooti offers a precision BGA stencil set for universal direct heat rework. This multi‑piece template collection supports reliable rework across notebooks, desktops, and consoles.

Precision BGA General Template – Universal Direct Heat Stencil Set

Achieve clean, professional rework of BGA chips with a universal direct heat stencil set that fits a wide range of devices. You get reliable templates designed to support your soldering project, reduce solder ball waste, and deliver consistent results when you repair notebooks, desktops, game consoles, and other graphic-related boards.

What you get

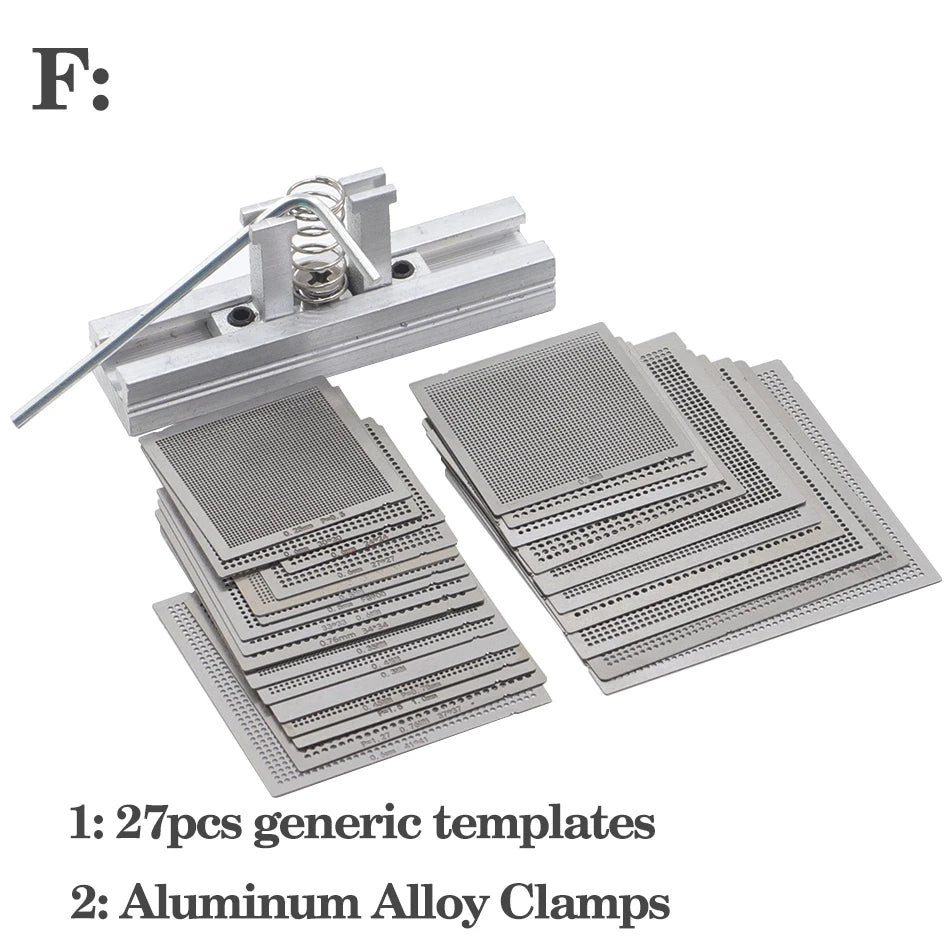

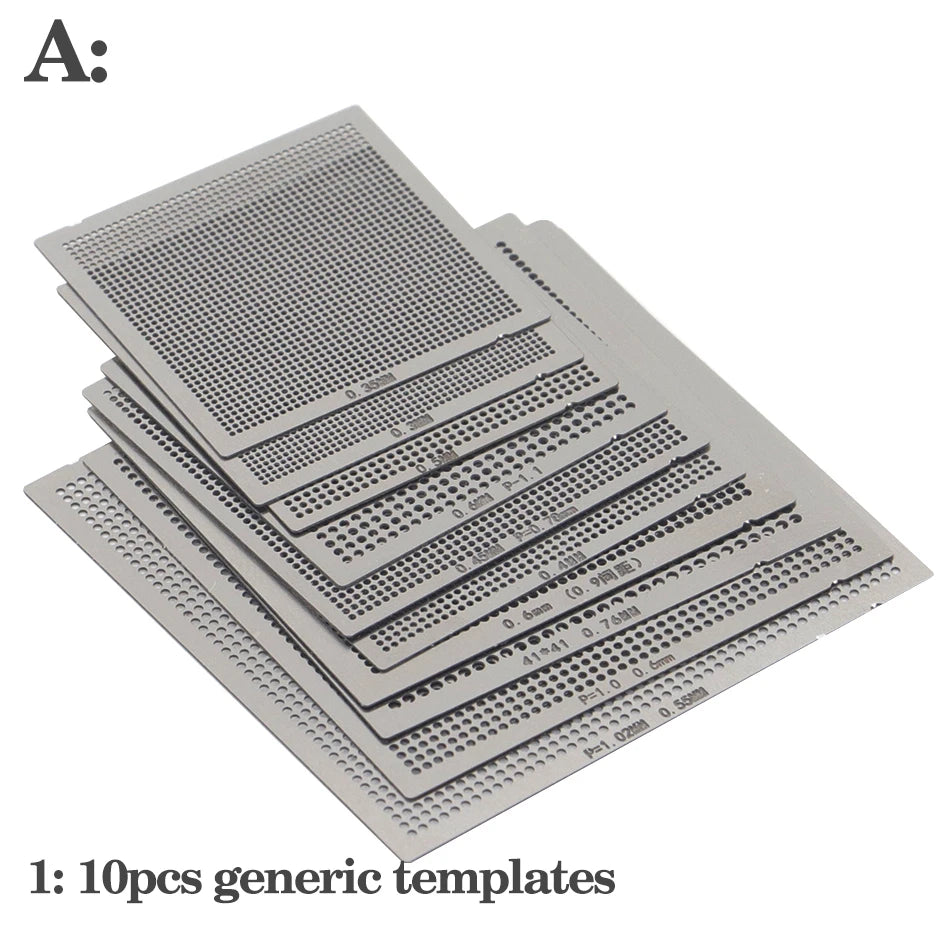

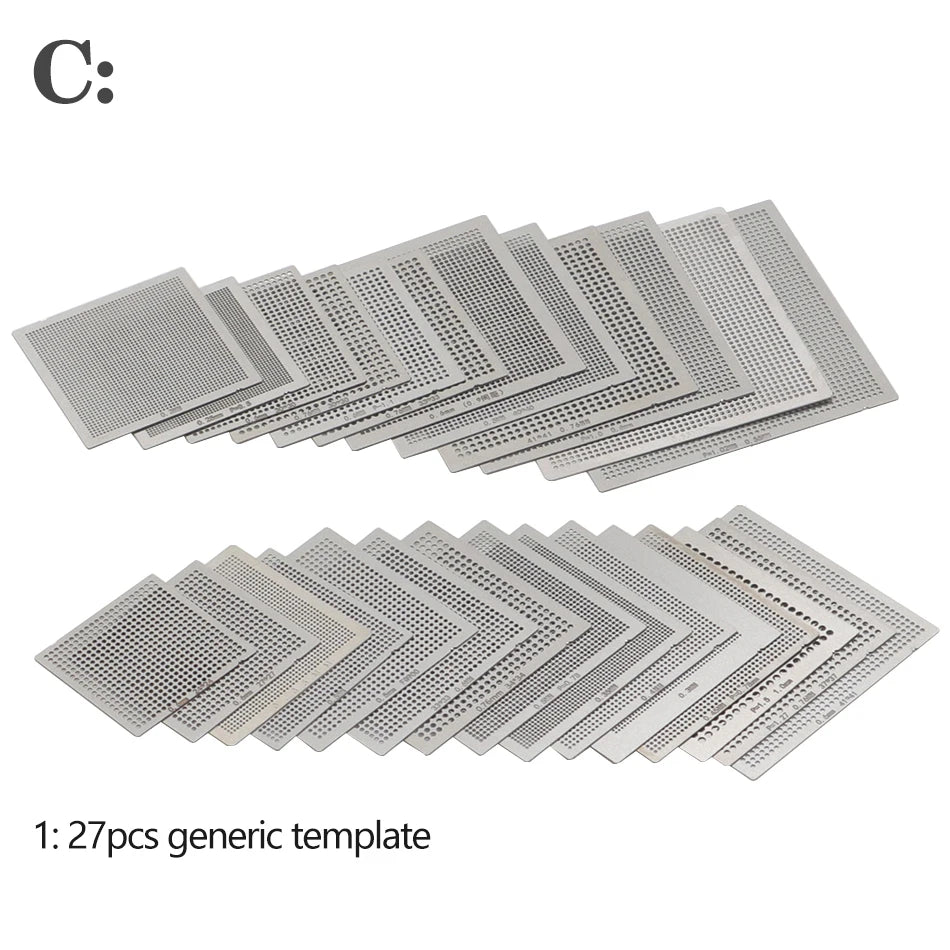

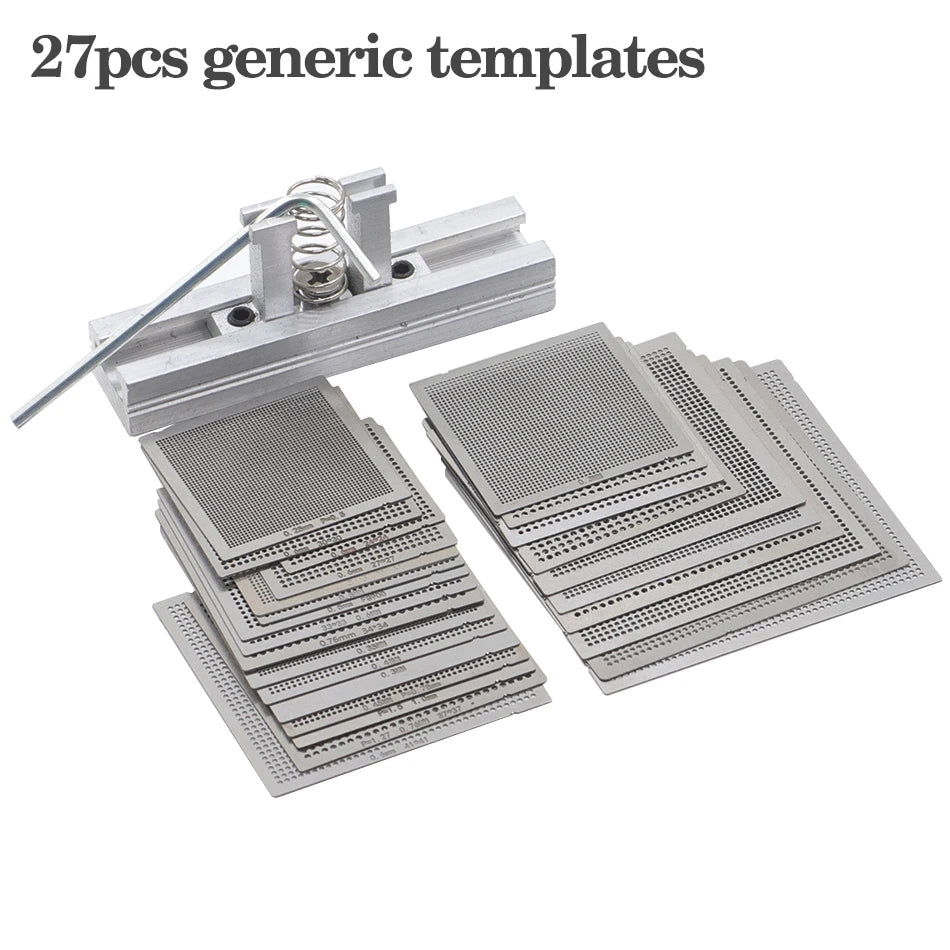

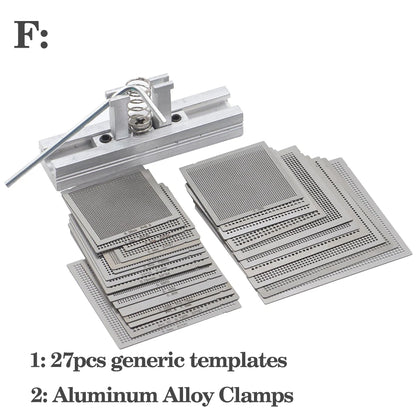

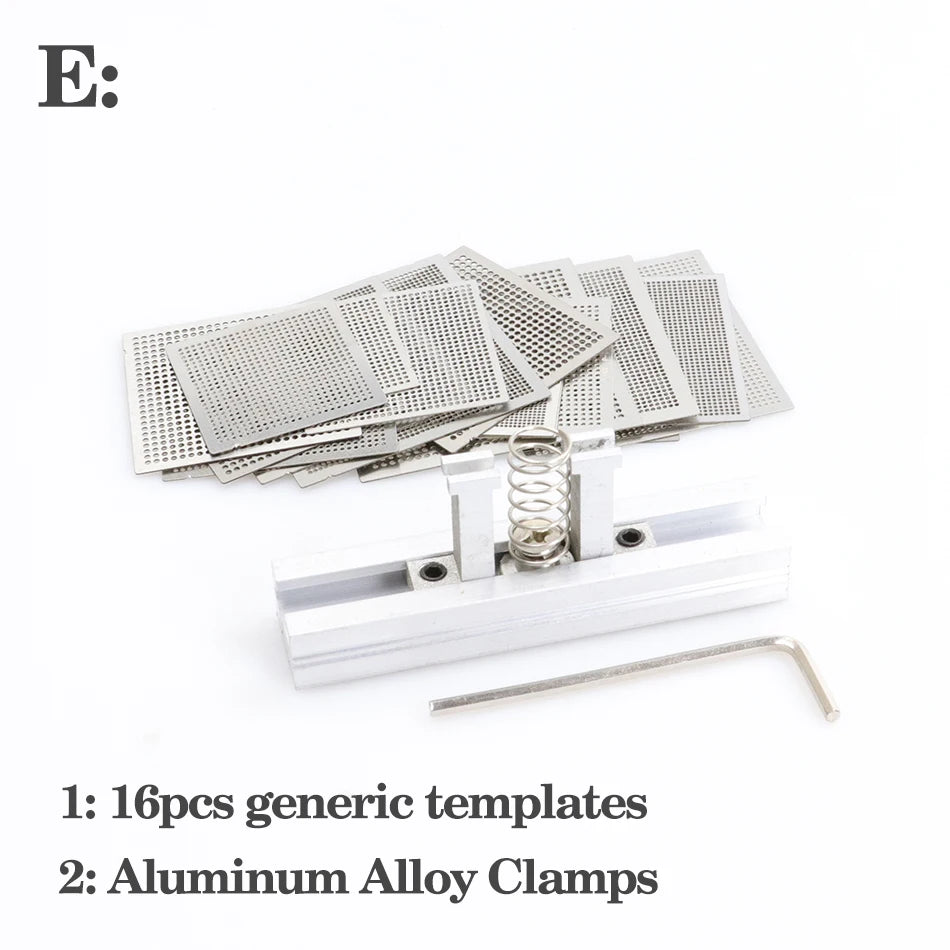

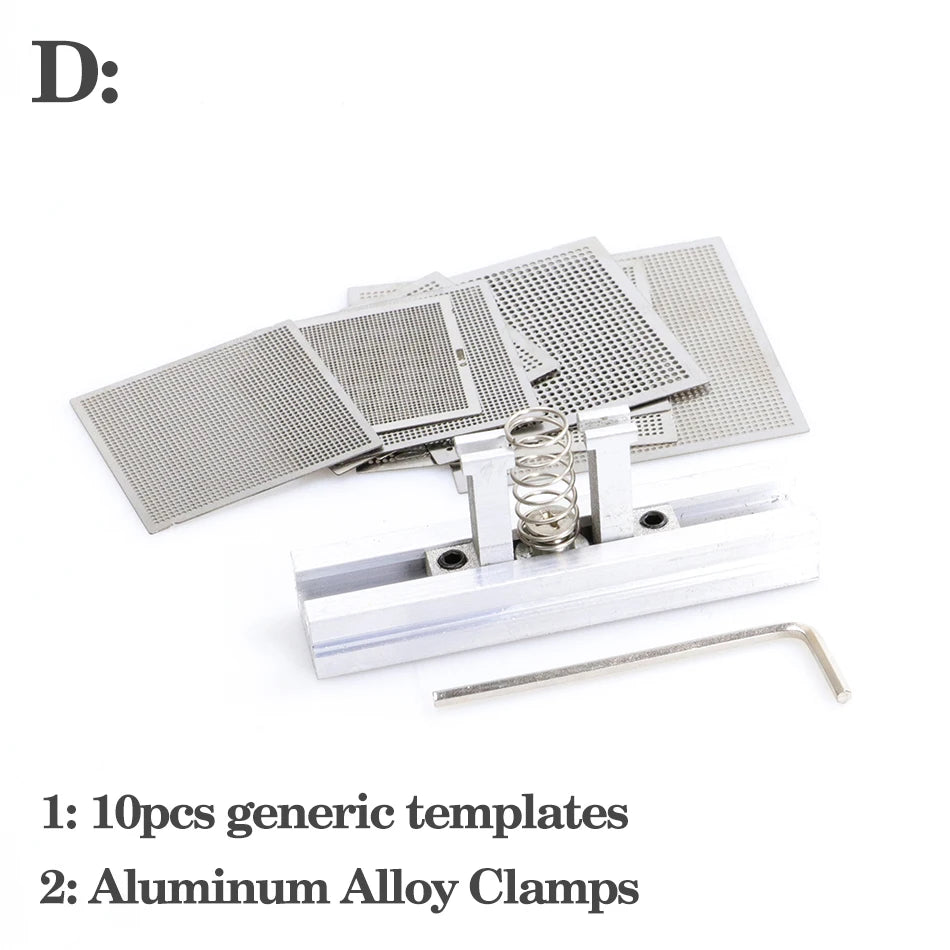

• Multi-piece assortments – available in 10, 16, or 27 piece configurations to cover diverse BGA footprints and chip sizes.
• Durable material – crafted from high‑quality nickel‑chrome alloy steel for enduring shape and heat resistance.
• Direct heat compatibility – stencils are designed for use with hot air rework gear; they tolerate heat without easy deformation when used correctly.
• Precise alignment and reduced waste – the stencil mesh area aligns with the BGA chip area to minimize solder ball loss and improve transfer accuracy.

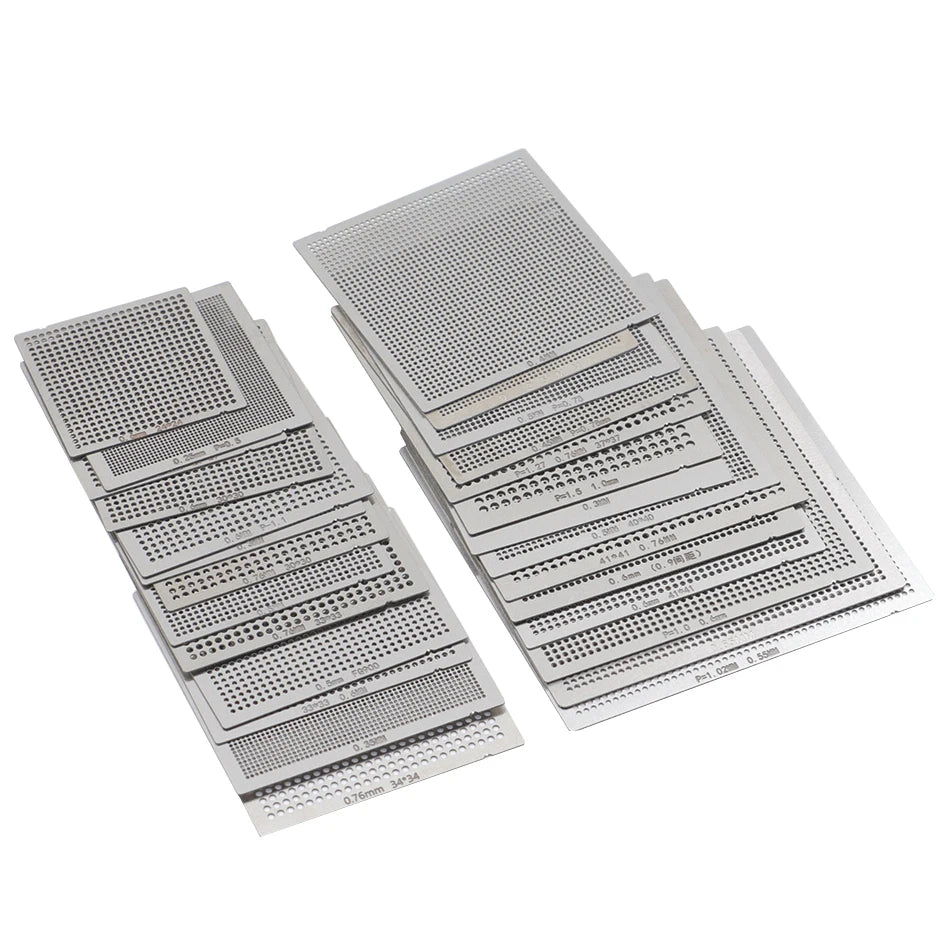

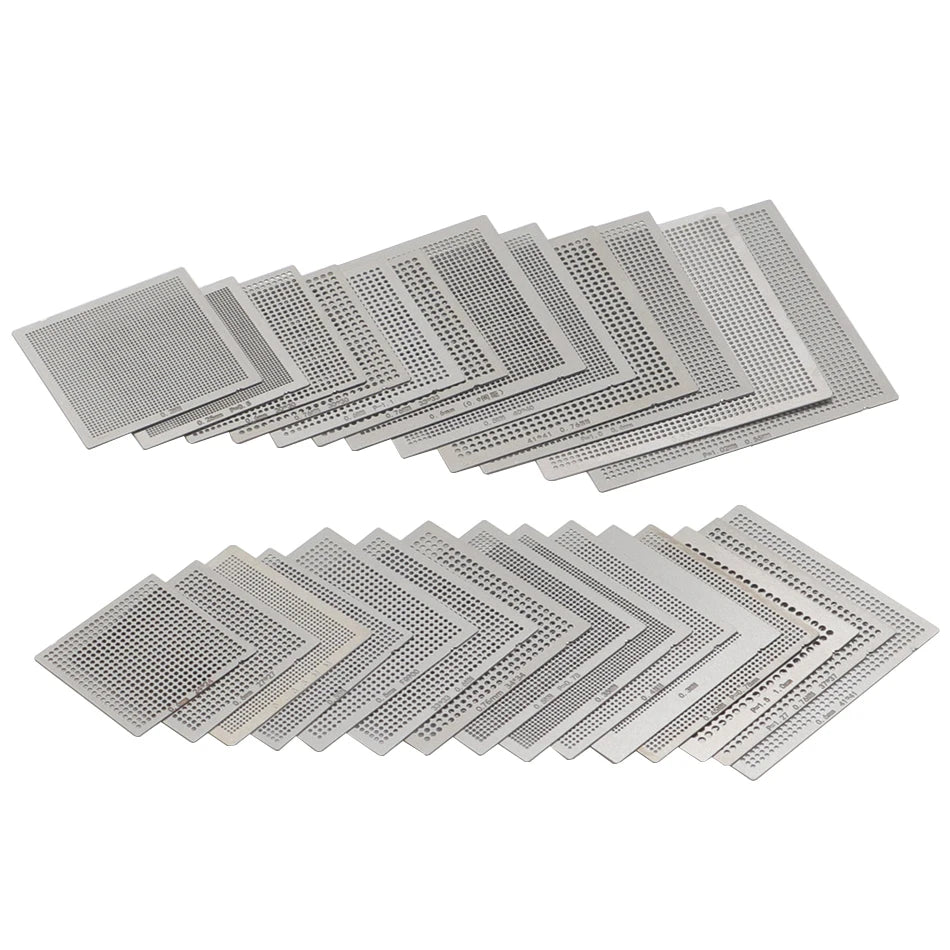

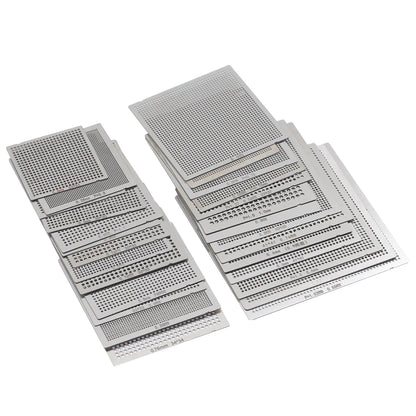

• Wide footprint range – the set includes a broad mix of stencil sizes and pitches to match common BGA footprints across laptops, desktops, and graphics boards.

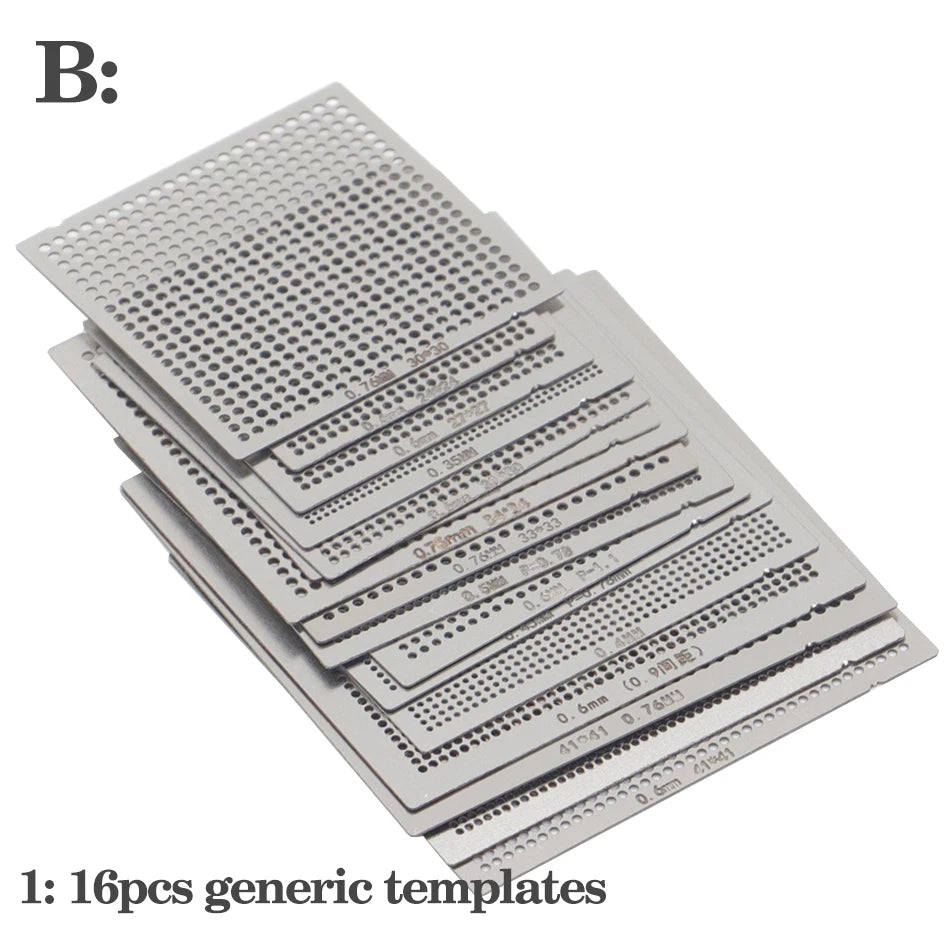

• Practical size options – example options include a variety of pitches and chip areas such as 0.3 to 0.76 universal stencils with pitches ranging from about 0.58 mm to 1.27 mm, plus larger 41 mm scale templates for diverse applications.
• Care and usage – works best with normal tin content and a controlled heat approach. Use a moderate air gun temperature to avoid deformation and preserve stencil integrity.

Specifications and compatibility

• Brand: NONE
• Model: BGA general template
• Type: Hand Tool Parts
• Material: Nickel-Chrome Alloy Steel
• Origin: Mainland China
• Use: Home DIY
• Estimated delivery days: 7
• Source Product ID: 1005002643419396
• Source Category ID: 142001

Whether you are performing a precise reball or rework, this universal stencil set is built to support accurate solder transfer and stable results. Follow standard safety practices when using hot air and ensure you are working in a well-ventilated area. The templates are sized to cover a broad spectrum of BGA footprints, so you can approach repairs with confidence and repeatable outcomes.

Features

• Provides universal BGA stencil fit
• Supports direct heat rework with stability
• Reduces solder ball waste during transfer
• Nickel chrome alloy for durability and heat resistance
• Available in 10 16 or 27 piece assortments
• Aligns precisely with BGA footprints for accuracy

Frequently Asked Questions

What devices can this BGA stencil support?

The stencil set covers a broad range of BGA footprints suitable for notebooks, desktops, game consoles, and other graphic-related boards. It helps achieve clean rework with consistent results.

How does direct heat compatibility help during rework?

Direct heat compatibility ensures the stencil tolerates hot air without deforming. This improves transfer accuracy and reduces solder ball loss when using hot air rework equipment.
