Five way navigation button module 5D joystick microcontroller independent keyboard switch

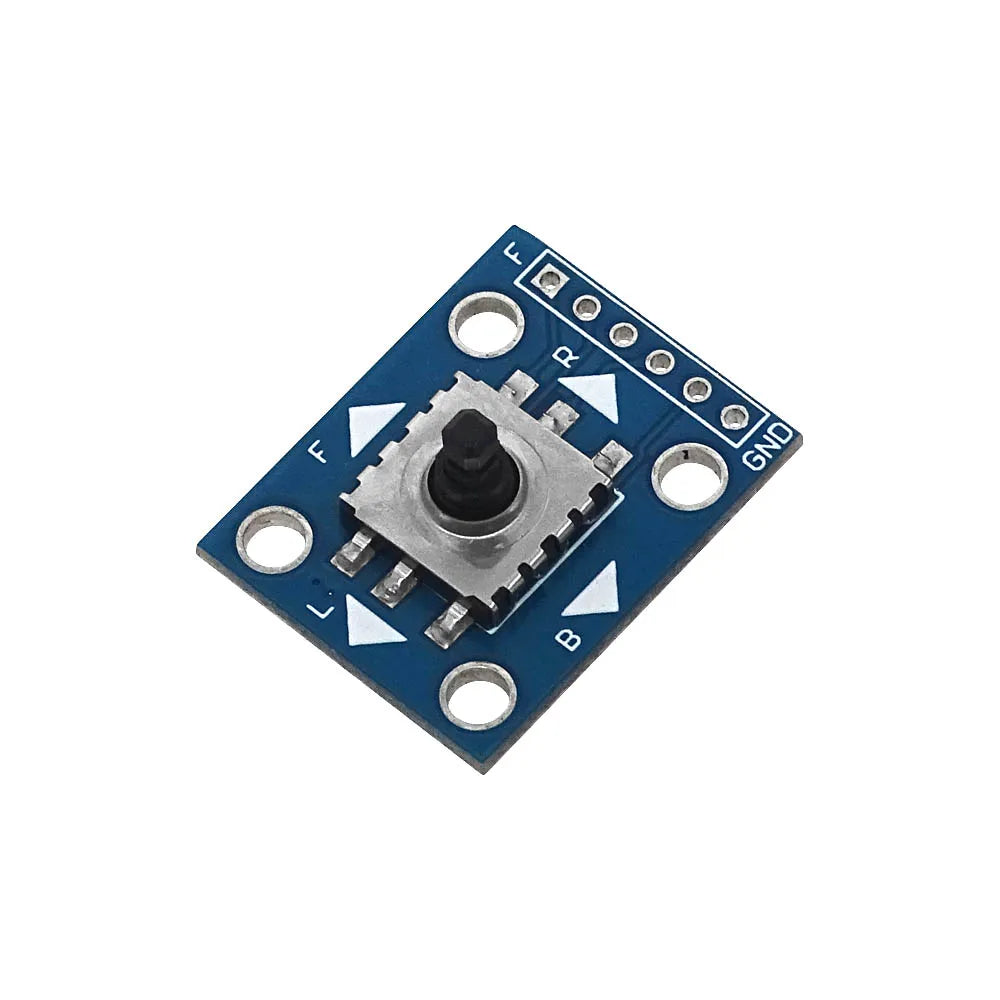

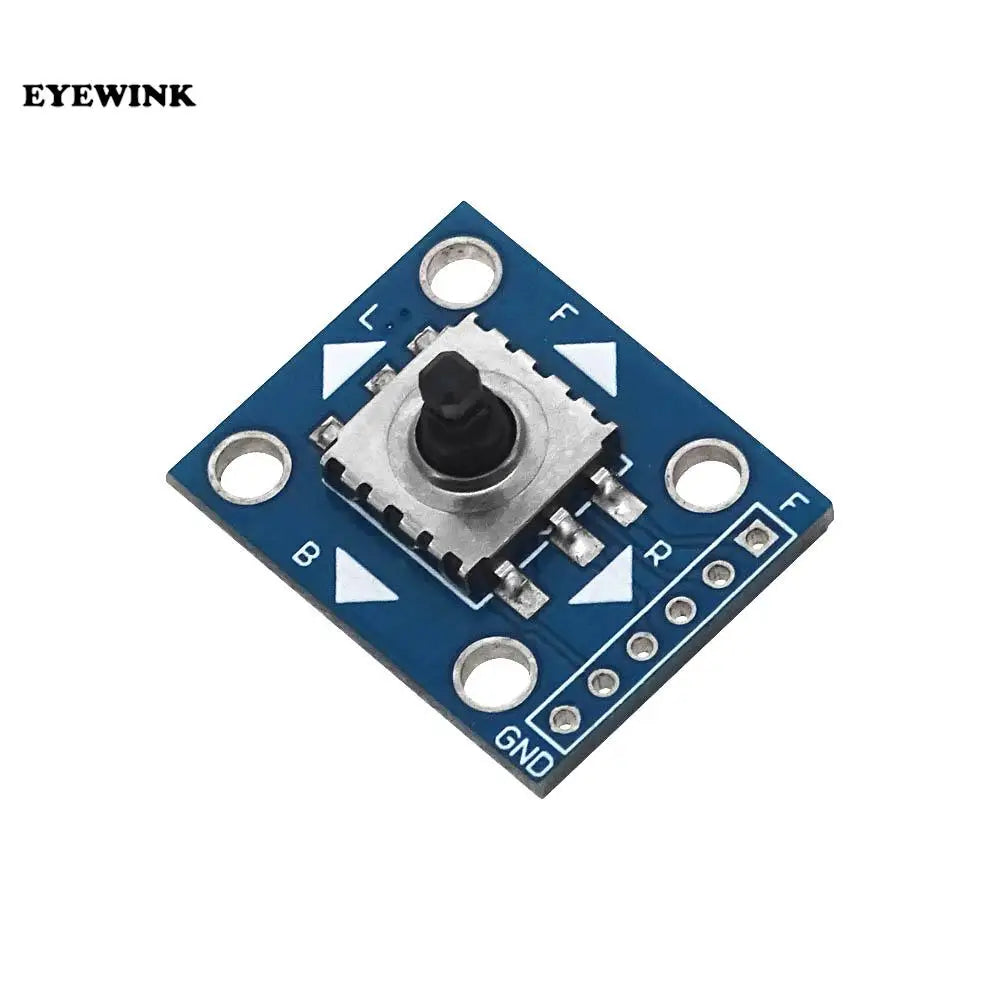

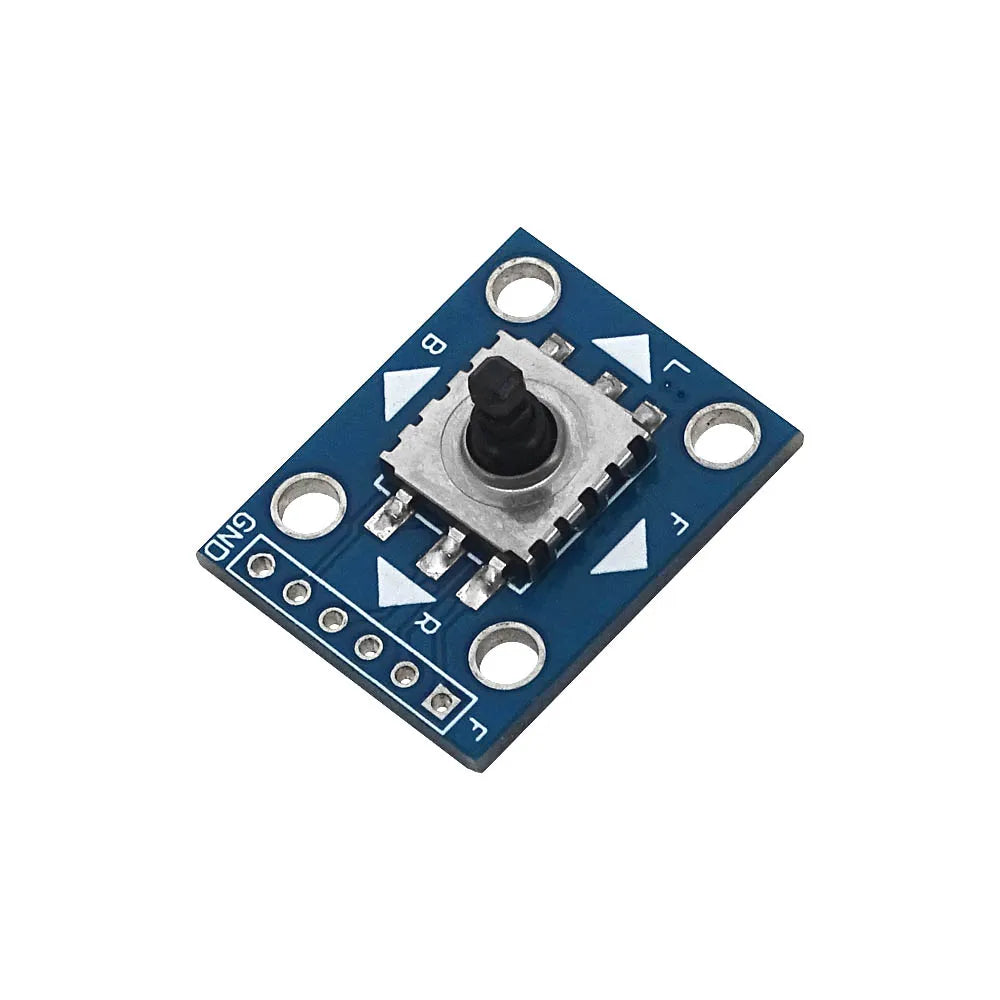

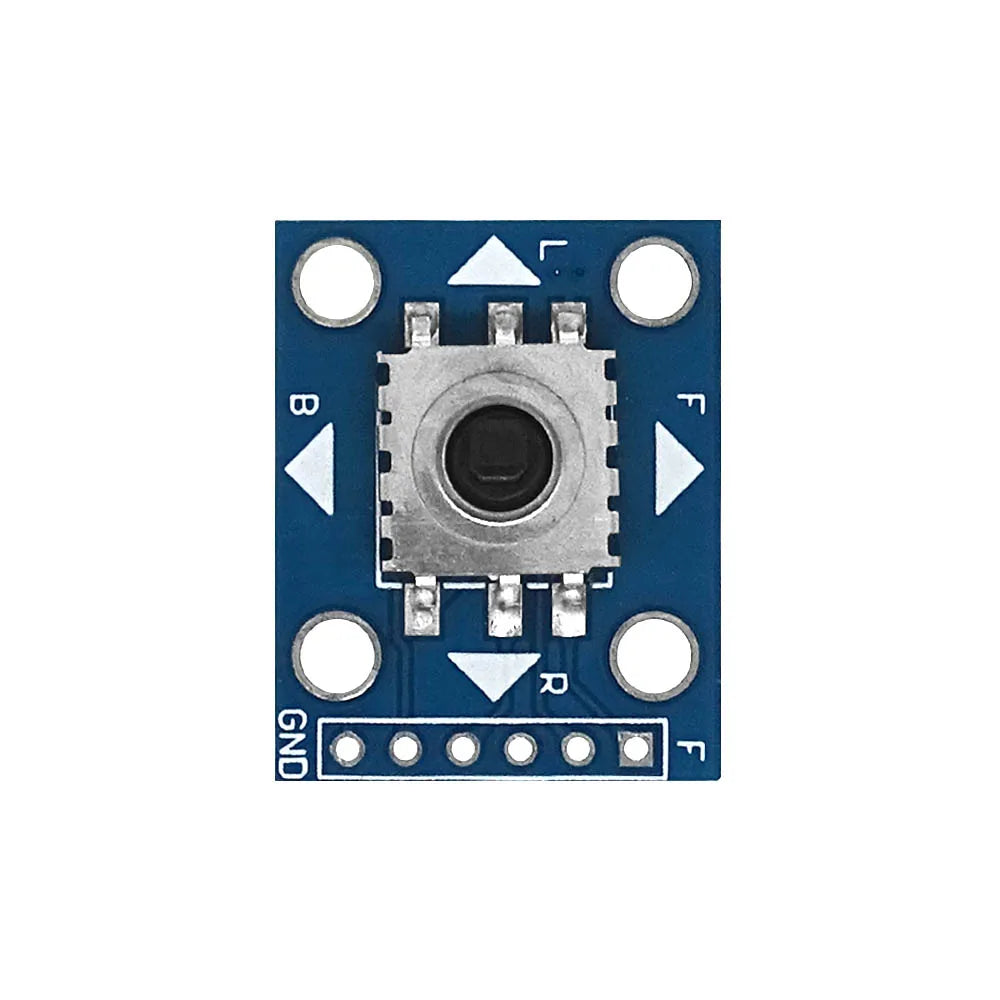

Azabooti presents the five way navigation button module, a compact 5D joystick-style switch for precise up, down, left, right, and center inputs. With ground-referenced signals and 5 V logic, it fits tight enclosures and improves menu, robotics, and DIY keyboard-like interfaces.

Take navigation to the next level in your projects with a compact five-way navigation button module that gives you precise directional input at your fingertips. The 5D joystick-style switch supports up, down, left, right, and center presses, all wired to ground so you can read clear, reliable signals with your microcontroller. With a 5 V logic level, this module is ideal for menus, game prototypes, robotics controls, and DIY keyboard-like interfaces.

Key benefits

• Compact 24 x 20 mm footprint fits into tight enclosures and keeps your project lean.

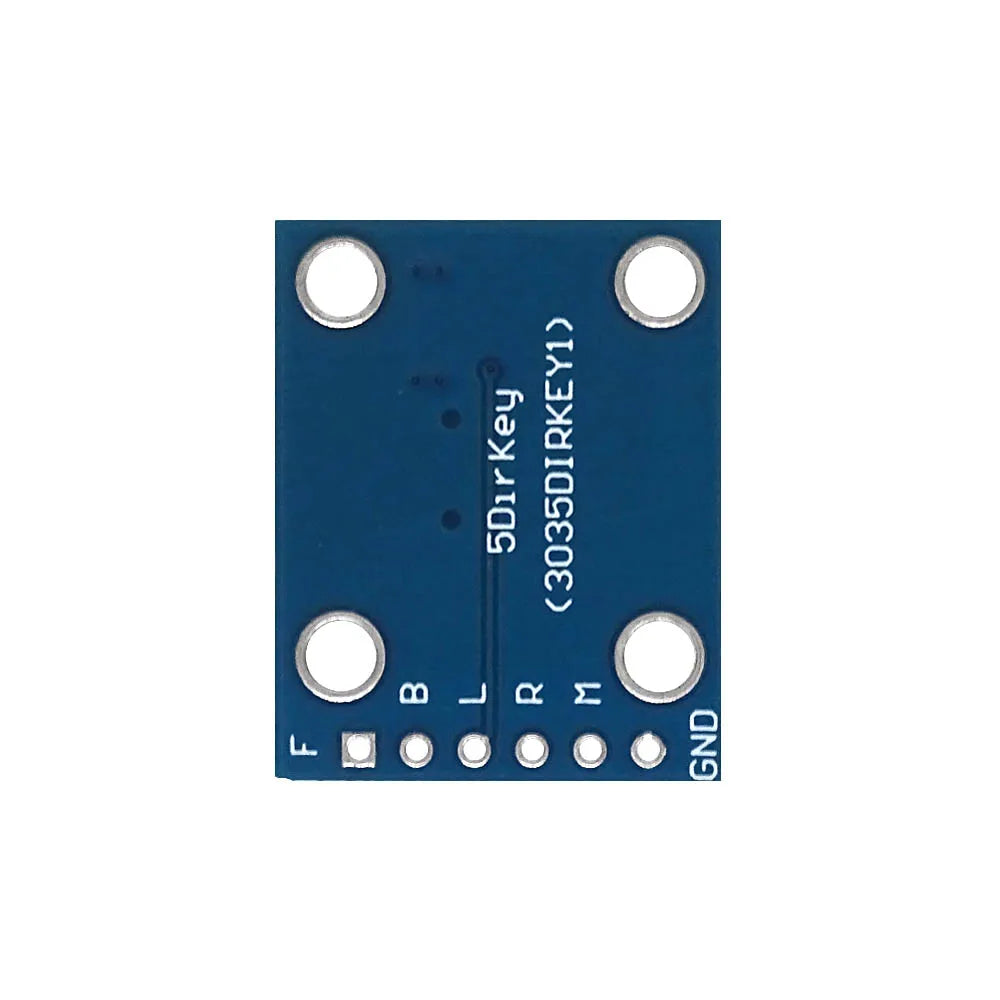

• Seven-pin header including GND with clearly labeled directions for easy wiring.
• Active-low signals when a direction is pressed, the corresponding line is pulled to GND for simple digital reads.
• Five directional inputs plus center Up, Down, Left, Right and Center (M) give you versatile control options.
• Rugged, small form factor designed for hobbyist and professional projects alike.

How it works and what to connect

The module uses ground-referenced inputs. When you press a direction, the corresponding IO line is shorted to GND, producing a logic 0. When released, the line remains high via your pull-up on the microcontroller side. The typical mapping is:

• Up is connected to port F
• Down is connected to port B
• Left is connected to port L
• Right is connected to port R
• Center (middle) is connected to port M
• GND is the common reference for all signals

Key wiring notes: use a 5 V logic level on your microcontroller and enable pull-ups on the input pins. This module does not require a separate Vcc pin; the IOs are read as active-low signals when a direction is pressed.

Care and usage tips

• Mount the module securely using the four mounting holes to prevent movement during use.
• Route wires neatly to avoid interference, especially in densely packed enclosures.
• Verify your microcontroller reads the pins with internal pull-ups or external resistors, and debounce inputs as needed for smooth navigation.
• Operate at 5 V logic for best compatibility with common microcontroller boards such as Arduino-style platforms.

Specs at a glance

• Brand: CFsunbird
• Model: Five way navigation button module
• Supply voltage: 5V
• Size: 24 x 20 mm
• Connections: GND and five directional pins plus a center pin
• Application: Digital input for microcontroller projects

Features

• Drives multiple directions with five inputs
• Compact 24x20 mm footprint fits tight spaces
• Seven-pin header for easy wiring
• Active-low signals simplify digital reads
• Ground-referenced design ensures reliable signals
• Rugged form factor for hobbyists and pros
• Center press adds flexible control options
