10-Piece 12x8mm On-Off Latching PBS Button For DIY Electronics

Discover the 12x8 mm PBS push button switch for reliable low-voltage control. Azabooti offers a compact latching ON-OFF button ideal for DIY projects and small electronics.

Experience rock-solid control with a compact latching on-off push button that locks in your chosen state at the flip of a finger, perfect for small electronics, DIY projects, and portable devices.

This 12x8 mm PBS push button switch is a sturdy, two-pin device designed for reliable performance in low voltage circuits. It features a locking ON-OFF action that remains in its last state until you deliberately press it again, making it ideal for power control, mode selection, or user-activated features in a wide range of enclosures and projects. The small footprint keeps your design compact without sacrificing tactility or durability.

Key specifications and benefits

• Compact footprint: 12 mm by 8 mm mounting footprint, with a slim profile that fits tight enclosures and handheld devices.
• Latching ON-OFF action: Self-locking mechanism ensures the button stays in the last selected state until you press again.
• Voltage and current: Rated for up to 5 V and 1 A, suitable for low-power control circuits and microcontroller projects. It also supports up to 30 V in DC applications as indicated in the official specifications.
• Two-pin configuration: DIP / SMT capable for versatile mounting options on your PCB or in a project enclosure.
• Durable housing: Plastic button and robust switch body designed for repeated use and reliable operation in compact spaces.

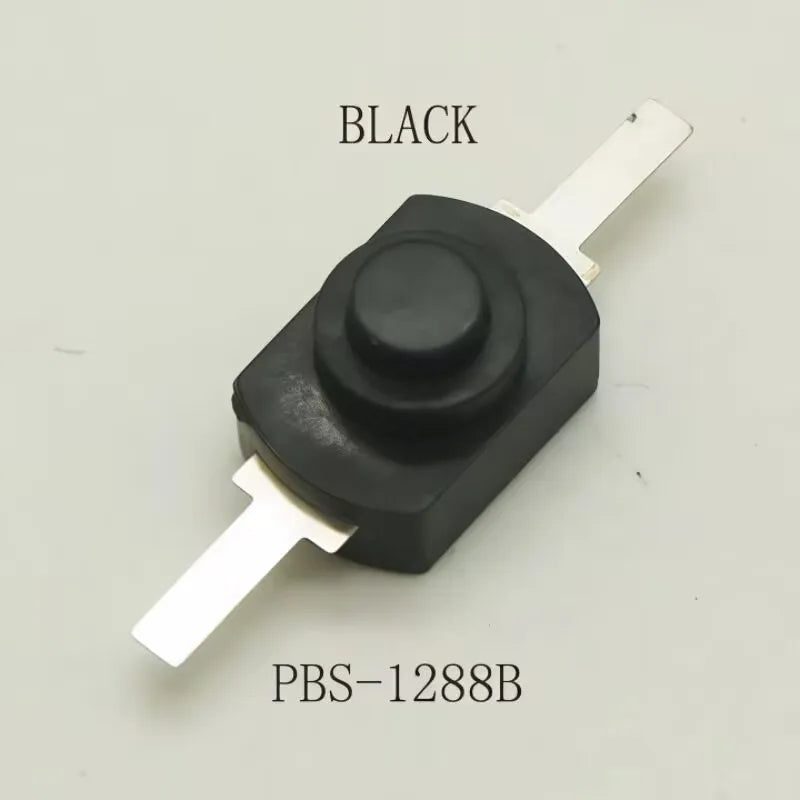

• Color options: Available in classic Black and White finishes to match your device aesthetics.
• Model lineage: PBS-1288 series known for compact control switches used in a variety of consumer electronics and DIY builds.

What you can use it for

Use this push button switch as a primary power control in handheld devices, small electronics, or DIY gadgets where a physical on-off toggle is preferred. It’s well-suited for projects like flashlights, portable signaling devices, microcontroller projects, or any enclosure that benefits from a tactile, locking push button. The latching action helps you conserve power by staying in the off state until you actively press to turn it on, and vice versa.

Compatibility and integration tips

• Ensure your PCB or enclosure design accommodates the 12x8 mm footprint and the vertical height shown in the product drawings.
• Two-pin DIP/SMT mounting makes it straightforward to integrate with common prototyping boards and compact circuit designs.
• Operate within the 5 V 1 A range for digital control circuits or appropriate DC supply configurations up to higher voltages as permitted by your design.

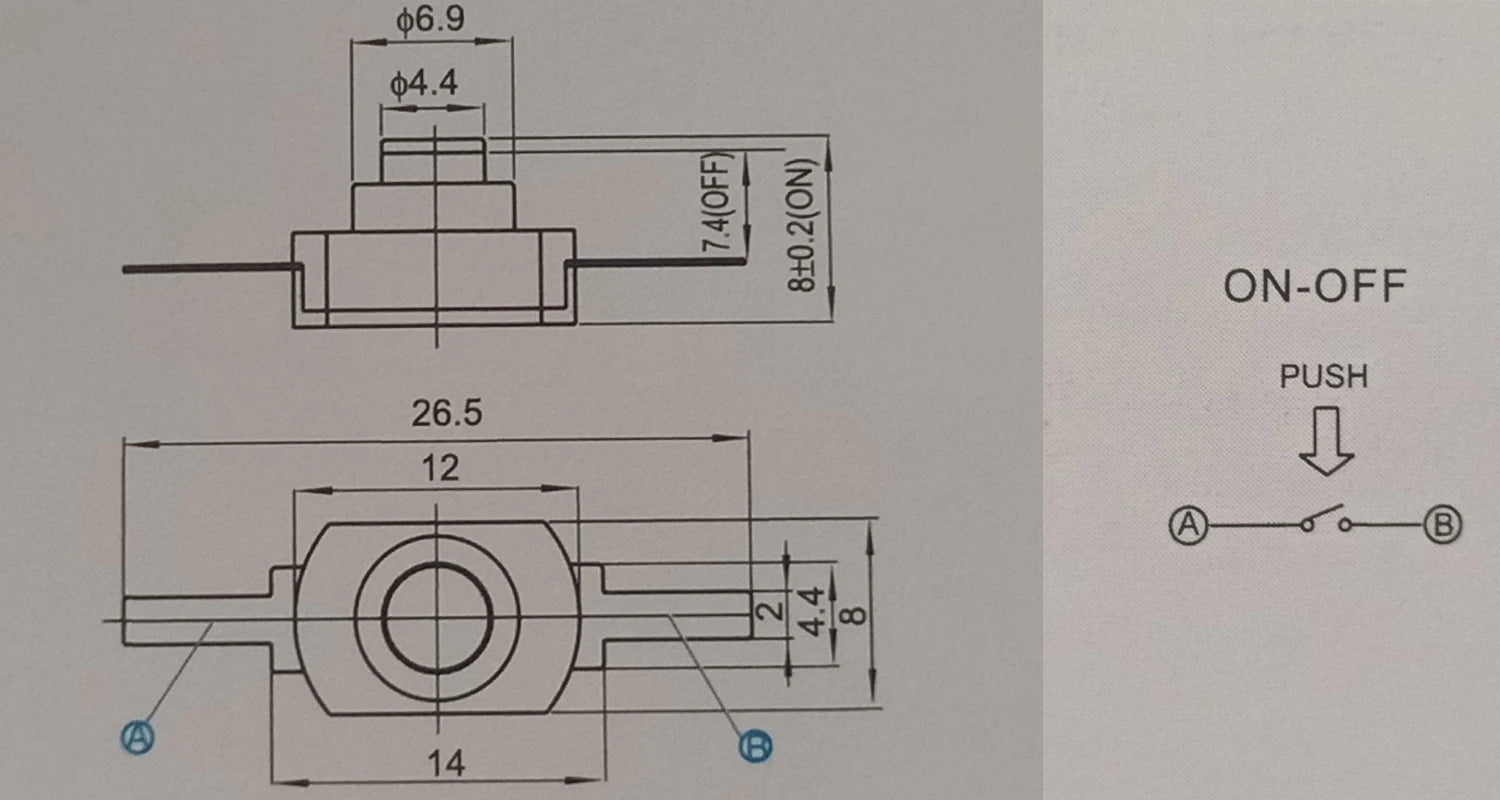

• Mounting orientation and mechanical fit are aided by the included compact profile; consult the dimensional diagram when designing enclosures.

Care, maintenance, and usage

• Keep the actuator area clean and free from dust to ensure reliable tactile feedback and consistent operation.
• Use appropriate mounting hardware and secure the connector pins to prevent loose connections in vibration-prone environments.
• Inspect for any signs of wear or cracking of the plastic housing if subjected to heavy use or harsh conditions.
• Operate within the specified electrical ratings to preserve long-term reliability and function.

With its compact size, robust latching action, and flexible mounting options, this PBS-1288 series push button switch offers a dependable solution for control interfaces in space-constrained electronics projects. Whether you’re prototyping a handheld device or finalizing a small enclosure, this switch delivers precise, repeatable on-off control you can trust every time.

Features

• Compact footprint fits tight enclosures
• Latching ON-OFF action maintains state
• Low voltage 5V, 1A suitable
• Locking design ensures deliberate actuation
• Two-pin simple electrical connection
• Durable plastic button construction
• Easy integration for mode selection

Frequently Asked Questions

What applications is this push button suitable for

This button is ideal for power control, mode selection, and user-activated features in small electronics. Its latching action helps preserve state in portable devices and compact enclosures.

How do I install the 12x8 mm PBS switch

Mount it in a compatible enclosure using the 12x8 mm footprint. Connect the two terminals to your low-voltage circuit, then press to toggle on or off. Ensure your supply remains within 5V and 1A.
