GTRIC 8-shaped Coupler D23L32 Type Plastic Flexible Eccentric Declination Elastic Coupling Dedicated Coupling for Encoder

Azabooti presents the GTRIC Eight-shaped Elastic Coupling for encoder-ready systems, a compact, durable solution for precise torque transmission. This D23L32 flexible coupling reduces misalignment and vibration while supporting lightweight automation setups.

Upgrade your precision motion with confidence. The GTRIC Eight-shaped Elastic Coupling is designed to smoothly transmit torque between shafts while compensating minor misalignment, eccentricity, and deflection. Built for encoder-ready applications, this flexible coupling helps reduce vibration and wear, delivering reliable performance in automation, robotics, and machinery where precision matters.

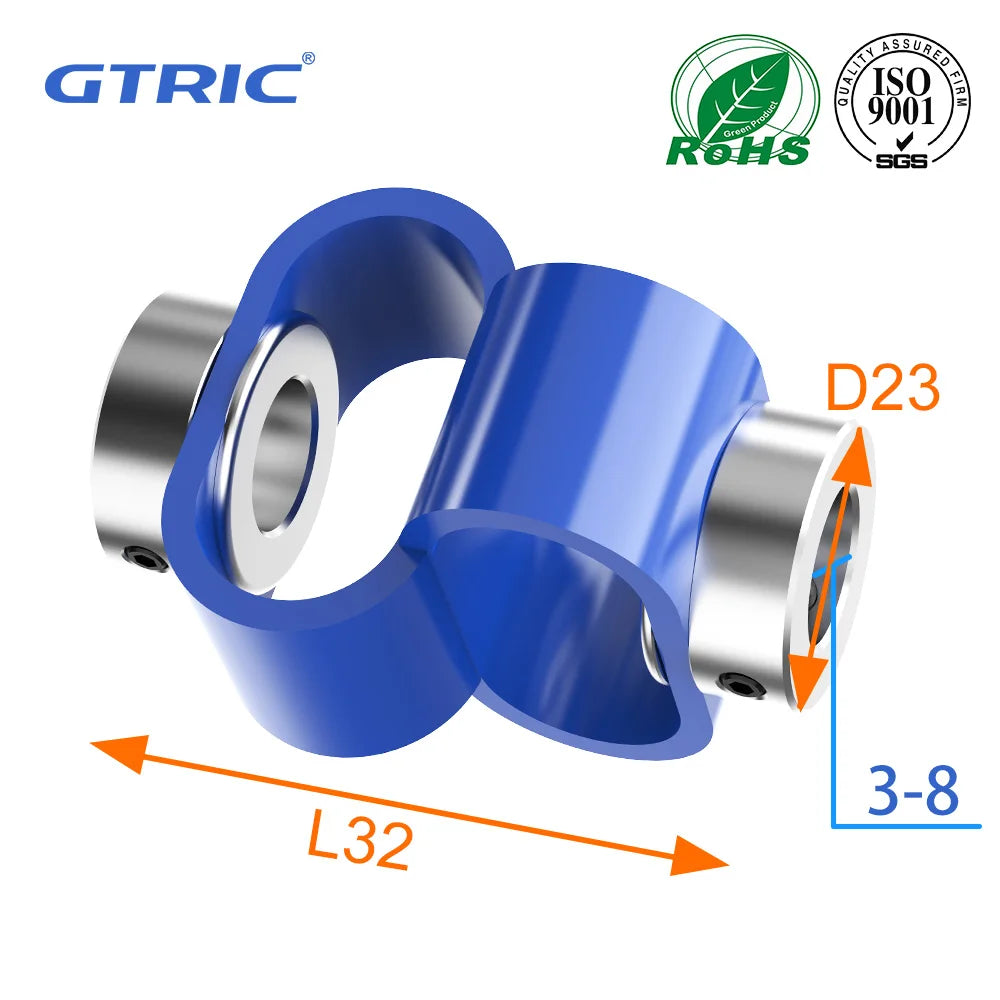

You’ll appreciate a compact, robust solution featuring a 16mm coupling diameter and a 32mm overall length, capable of handling speeds up to 3000 r/min with a rated torque of 0.15 N.m and a max torque of 0.3 N.m. The D23L32 series couples flexible aluminum housing with high-quality inner components, providing a durable, lightweight solution for your drive system.

Key benefits include easy alignment, smooth torque transmission, and resilient operation in environments requiring lightweight, versatile couplings. This unit supports a bore range from 3 to 8 mm and uses M3 mounting screws with a tightening specification around 1.2 N.m. The eight-shaped design optimizes misalignment compensation while maintaining a compact footprint, making it a practical upgrade for encoder-driven axes and servo motor integrations.

What you get with this coupling:

• Flexible, universal structure for adaptable mounting in diverse machine layouts
• Reliable micro-to-medium torque transmission suitable for encoders and automation components
• Rugged aluminum body with precision inner components for long-lasting performance
• Ease of installation with standard M3 screws and straightforward bore sizing
• RoHS-compliant materials and EN/ISO-ready construction for compliant applications

How to use and care for your coupling

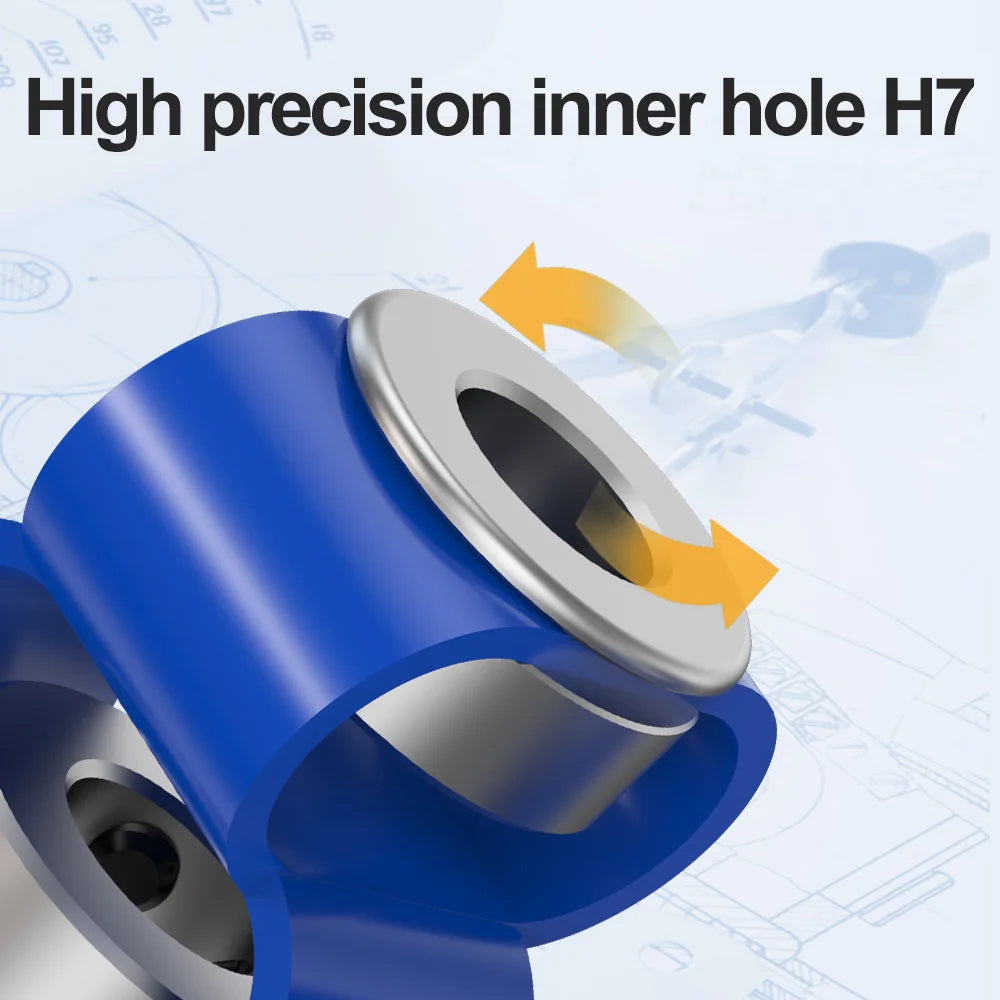

• Check shaft bore compatibility (3–8 mm) and ensure proper adsorptive seating of the inner bushings
• Secure mounting with the provided screws, tightening to approximately 1.2 N.m - avoid over-tightening
• Inspect the coupling periodically for signs of wear, corrosion, or misalignment, and replace if needed
• Operate within the rated torque (0.15 N.m) and max speed (3000 r/min) to preserve performance

This eight-shaped elastic coupling is ideal for encoder-driven machines, servo systems, and precision automation where compact form, reliable performance, and ease of installation matter. Its lightweight aluminum construction pairs well with a broad range of motion control components, helping you keep your machine running smoothly and accurately.

Features

• Enable smooth torque transfer
• Compensate misalignment and eccentricity
• Reduce vibration and wear
• Engineered for encoder-ready applications

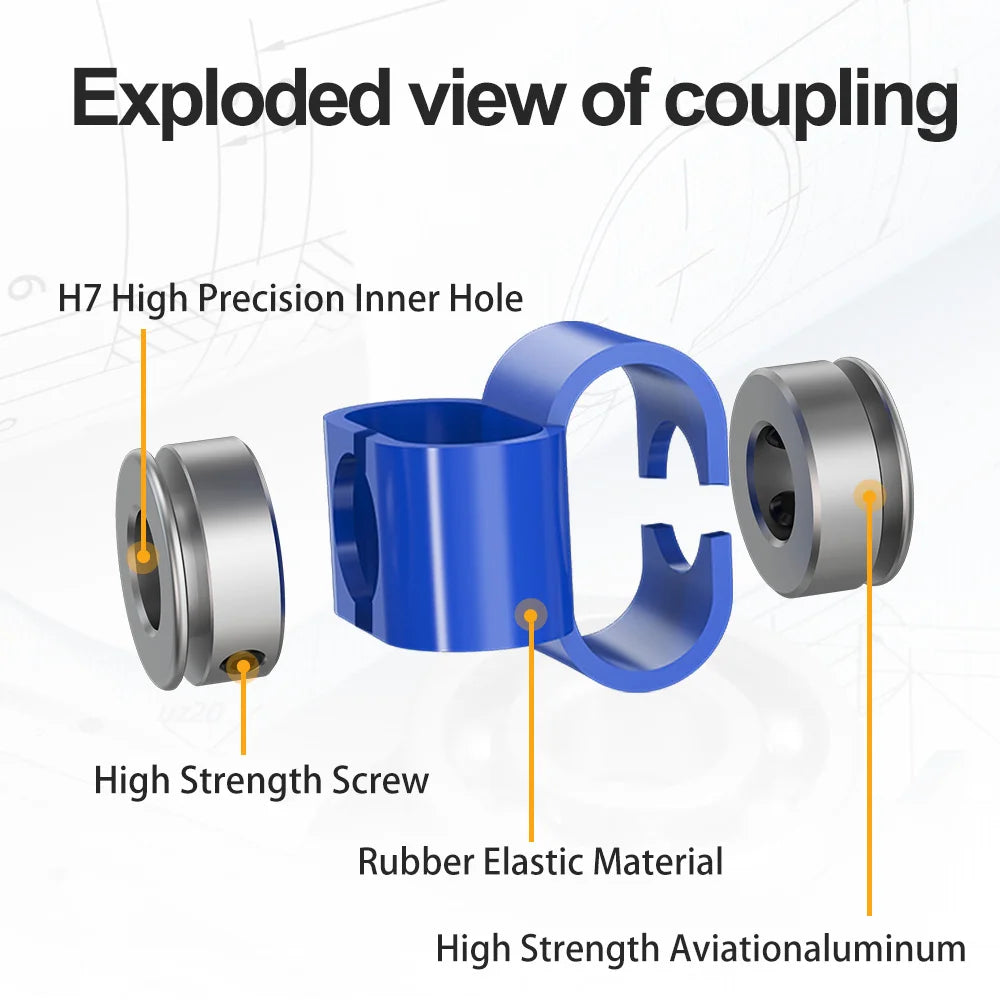

• Compact aluminum housing with robust inner components
• Bore range 3-8 mm for versatile mounting
• Supports speeds up to 3000 r/min and 0.3 N·m max torque

Frequently Asked Questions

What makes this coupling encoder ready and suitable for precision systems

The GTRIC coupling is designed to align with encoder shafts, minimizing backlash and runout. Its flexible design handles minor misalignments while protecting sensitive encoder readings, improving repeatability in automation tasks.

What bore sizes does the coupling support

This model supports a bore range from 3 to 8 mm, allowing compatible mounting with a variety of shaft sizes. M3 mounting screws are used for secure attachment.

Does the unit offer any benefits for vibration reduction

Yes, its elastic design dampens transmitted vibrations and deflection, leading to smoother torque delivery and reduced wear on connected components in robotics and machinery.
