Radius Template R Gauge R1-6.5 7-14.5 15-25 26-80 Radius Gage Plate Fillet Gaug External Internal Concave Convex Measuring Tools

The radius gauge from Azabooti delivers precise radius template checks for internal and external radii. This gauge tool supports quick, repeatable fillet measurements in metal, wood, and DIY projects.

Accurate, versatile radius measurement at your fingertips. This radius template gauge set helps you quickly verify internal and external radii with clean, repeatable results. Whether you’re fitting fillets on a metalwork project, inspecting machined parts, or aligning components in a woodworking or DIY shop, you’ll appreciate the consistency and ease of use this tool delivers.

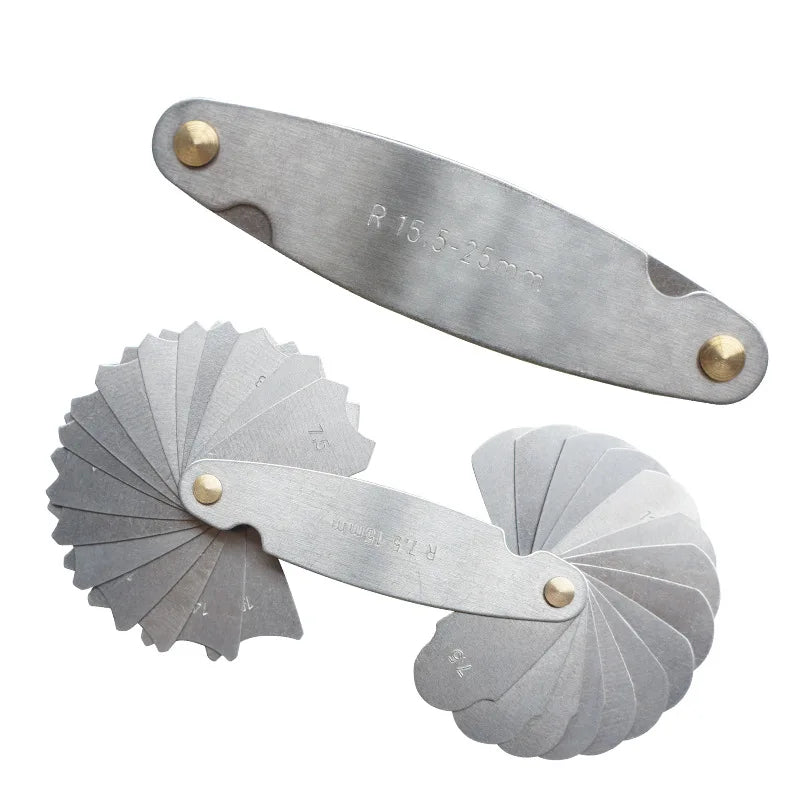

Lead with the most common radii you’ll encounter: R1-6.5, R7-14.5, R15-25, and R26-80 mm. Each segment is precisely graduated and organized into a compact, stackable kit that travels well in a tool bag or on a workbench. The set includes multiple leaf-style gauge blades with a pivoting mechanism, allowing you to capture or compare a wide range of radii in seconds without complex setup.

Key features include:

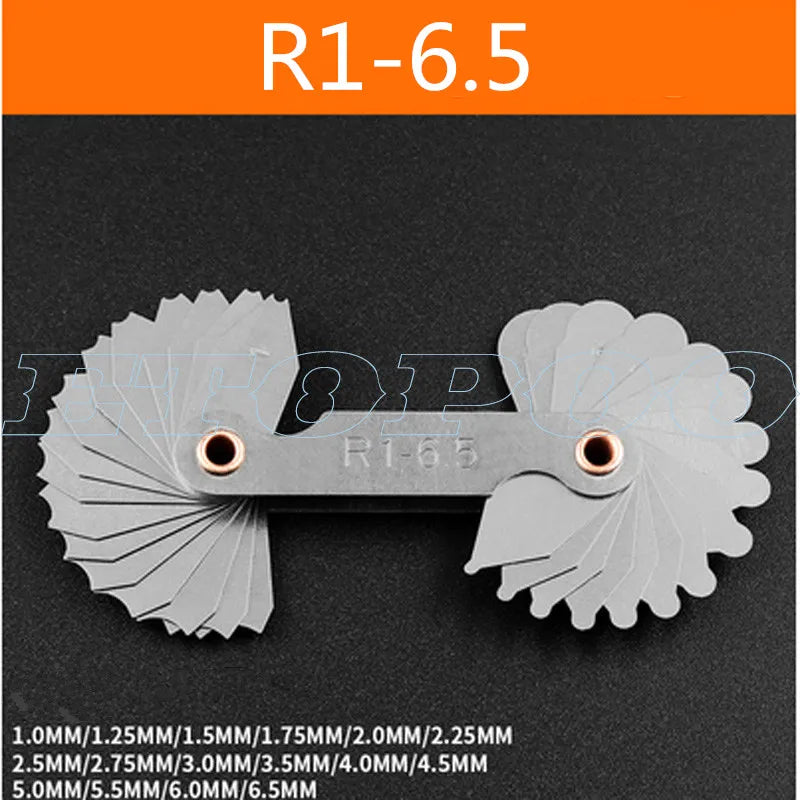

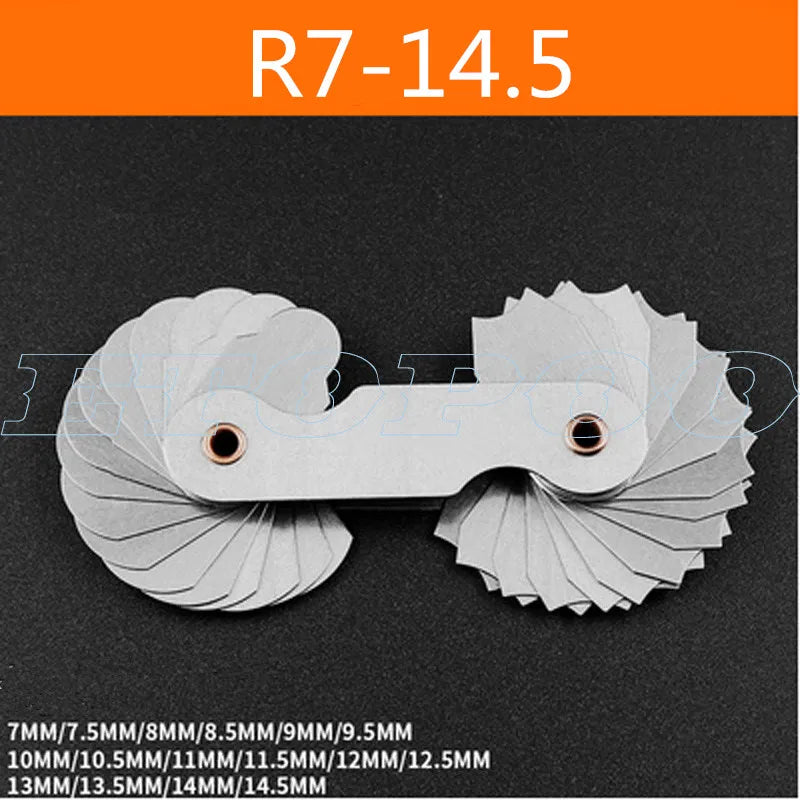

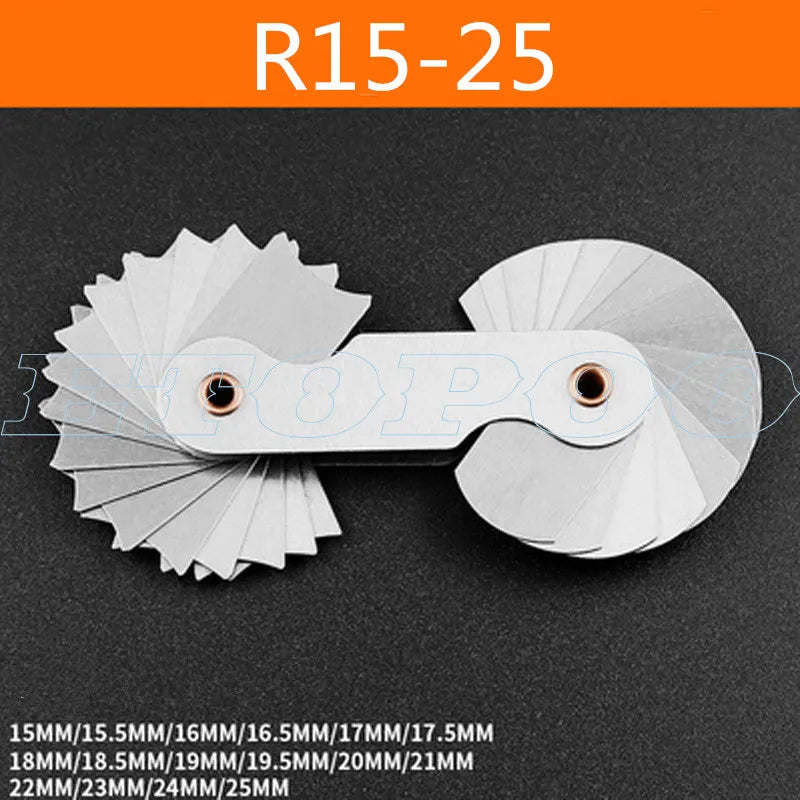

• Four radius ranges: R1-6.5, R7-14.5, R15-25, and R26-80 mm for broad coverage across projects
• Compact, interlocking design that keeps blades aligned for accurate readings
• Sturdy metal construction with durable steel leaves and pivot joints
• Easy-to-read markings on each blade for quick identification
• Ideal for external, internal, concave, and convex radius checks

How you’ll use it:

• Arrange the blades to match the radius you’re testing, then read the corresponding measurement directly from the blade edge
• For internal radii, align the internal faces against the test surface and compare against the scale
• Use as a reference gauge during fabrication, inspection, or assembly to confirm part geometry

Care and usage are simple. Keep the blades dry and free from oil or debris to maintain accuracy. After use, wipe with a clean cloth and store in the included compact holder to protect the blades and preserve readability of the markings. This set is an essential precision tool for metalworking, woodworking, machining, and DIY enthusiasts who demand reliable radius verification without guesswork.

Features

• Leads with common radii for quick setup
• Compact interlocking blades for accuracy
• Sturdy steel leaves for durability
• Pivot joints enable fast radius capture
• External and internal radius checks in one kit
• Concise, readable graduations improve efficiency
• Travel-friendly stackable design fits tool bags

Specifications

• Materials: steel leaves, metal construction, pivot joints

Frequently Asked Questions

What radii ranges does this gauge cover?

The set includes four ranges: R1-6.5, R7-14.5, R15-25, and R26-80 mm. It provides broad coverage for woodworking, metalworking, and DIY projects.

Can it measure concave and convex radii easily?

Yes, the leaf-style blades with a pivoting mechanism capture both concave and convex radii. This makes it suitable for fillets and rounded grooves in various materials.

Is there shipping available for Azabooti tools?

Azabooti offers standard shipping options. This radius gauge is built from steel leaves and metal components for long-term use, ensuring reliable readings during projects.
